Lightweight Outside, Powerful Inside
EQ-1000-P features module-level MPPT, precisely tracking the maximum power point of each PV module. Even when some modules are shaded, the others continue generating efficiently, reducing mismatch losses and improving overall rooftop solar performance. With PLC communication, a lightweight design, and smart monitoring, the system is easier to install, more stable to operate, and more efficient to manage.
Low-Voltage Safety, Long-Term Reliability
Module-level DC voltage stays below 60 V, reducing electric shock and arc-fault risks. With IP67 protection and a 25-year warranty, the system is built for reliable long-term outdoor operation
High Conversion Efficiency, More Energy All Day
Advanced power conversion technology and GaN power devices deliver peak conversion efficiency of up to 97.5%, unlocking more solar value with lower energy loss. With a wide 12–60 V operating voltage range, the system starts earlier, runs longer, and generates more energy in the morning, evening, and low-light conditions, increasing daily energy yield by up to 8%.
Stable Communication, Efficient O&M
Power line communications (PLC) enables stable connection between devices and the gateway without additional communication cables. The built-in relay design eliminates the need for extra relay hardware. Module-level management isolates a faulty module from the grid without affecting other modules
Simplified Installation, Lightweight Design
Plug-in wiring enables fast deployment. The unit is 30% smaller than the industry average and weighs only 2.4 kg, making installation easier. With 50% higher power density, it delivers stronger performance in a more compact design.

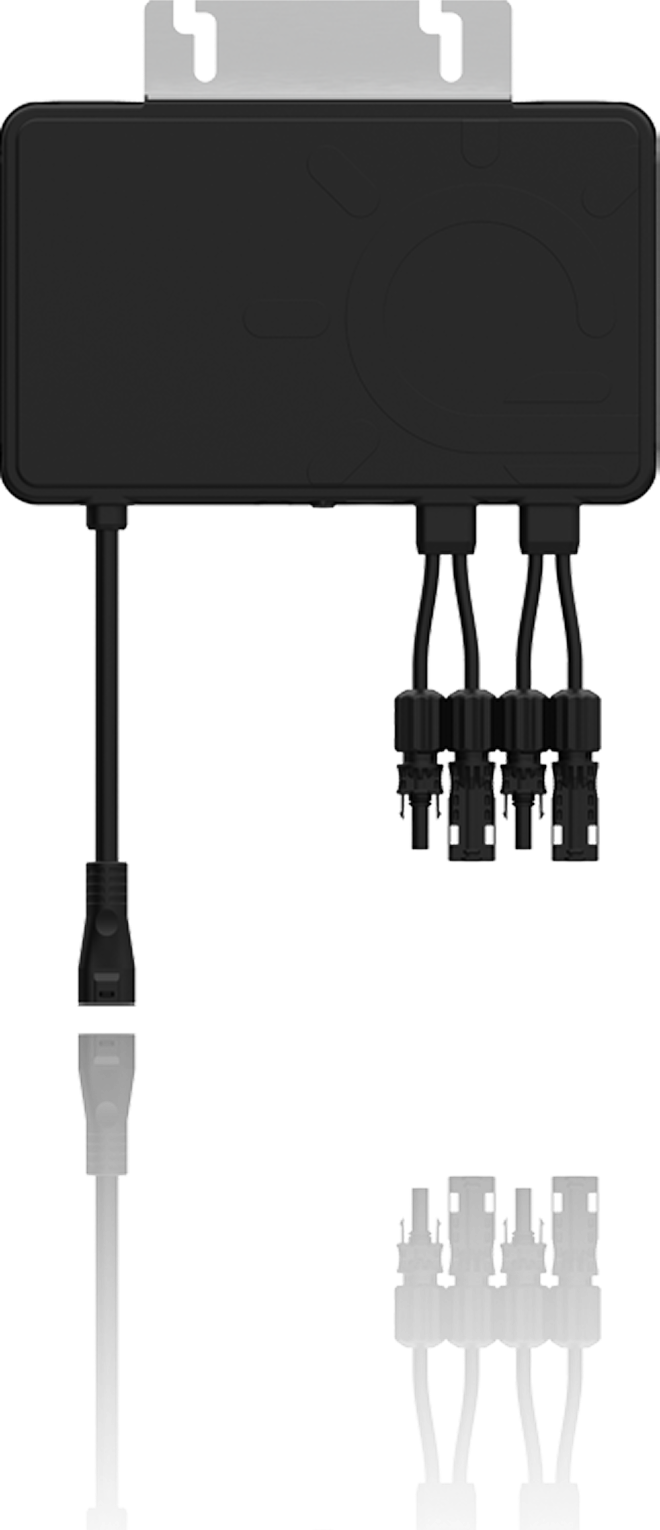

- Model
- EQ-1000-P
- Supported Module Power (W)
- (400-700)*2 W
- Max. Input Voltage (V)
- 60v
- Operating Voltage Range (V)
- 12v-60v
- MPPT Voltage Range (V)
- 16v-58v
- Dimensions (W × H × D, excluding mounting bracket)
- 268mm*164.5mm*31.5mm
- Net Weight (excluding mounting bracket) (kg)
- 2.4kg
- Operating Ambient Temperature (°C)
- -40℃-65℃
OneHo provides EQ Series microinverters and a complete HEMS+MLPE ecosystem to create greener, smarter homes.
